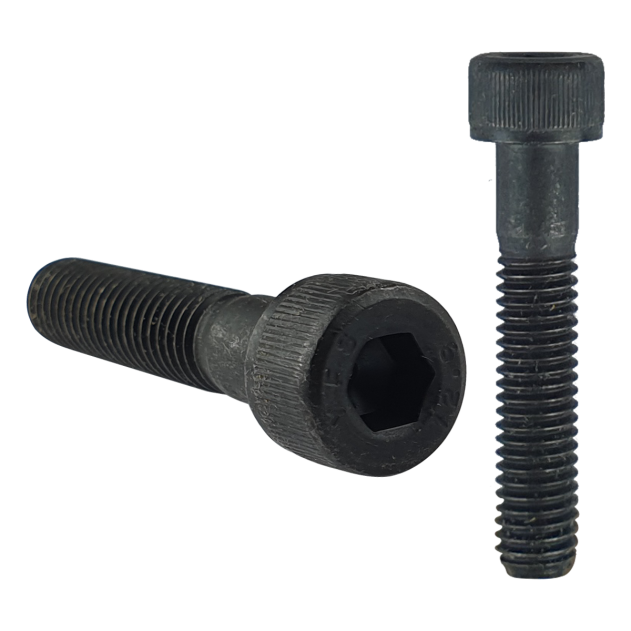

6-32 UNC x 2 Inch Socket Cap Head Screw, Self Colour Grade 12.9 Steel (ASME B18.3)

6-32 socket cap head screw

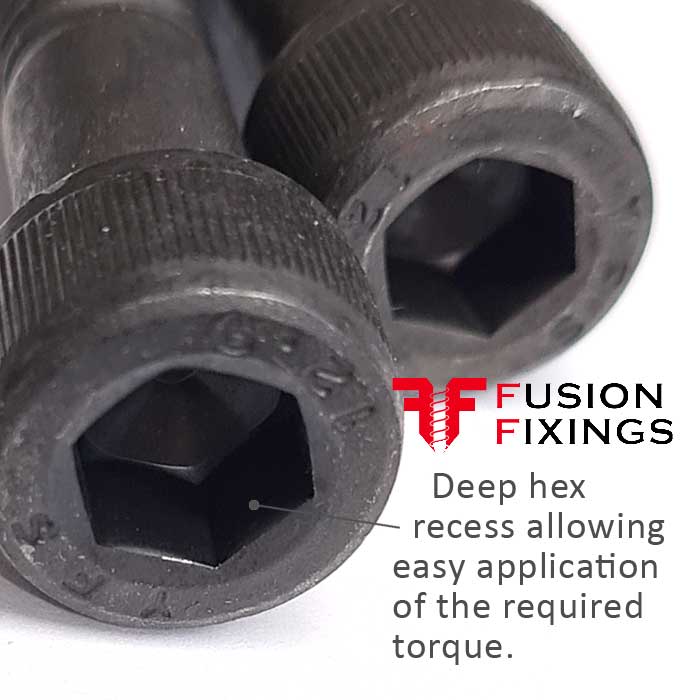

Socket cap head screw designed with a deep internal socket allowing application of the required torque for a secure assembly in construction, machinery, and automotive applications.

Designed for maximum performance in demanding environments and manufactured in self colour grade 12.9 Steel. With a distinctive compact cylindrical head that sees these socket cap head screws used when space is tight.

Available in many sizes and lengths and installed with an Allen wrench or hex key (Allen key) which sees them widely used across many industries.

Versatile and used by DIY enthusiasts and professionals across many diverse sectors including automotive, aerospace, machinery, and construction.

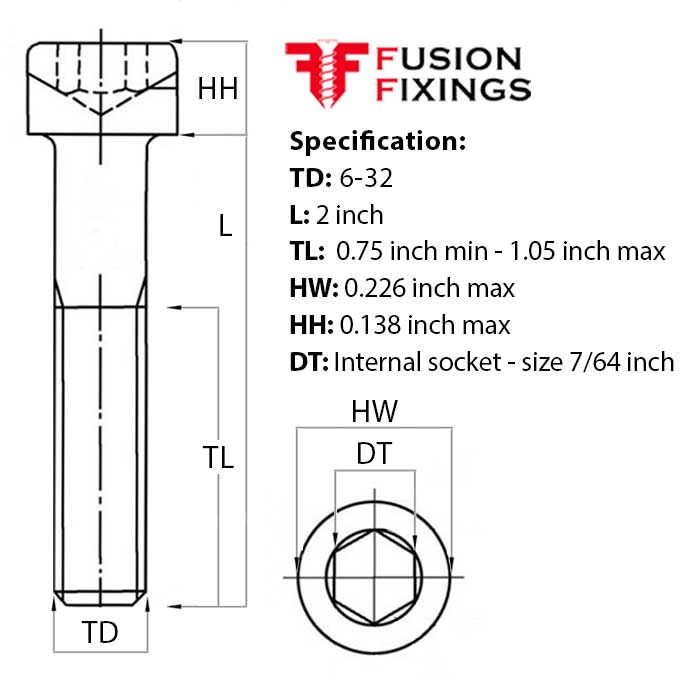

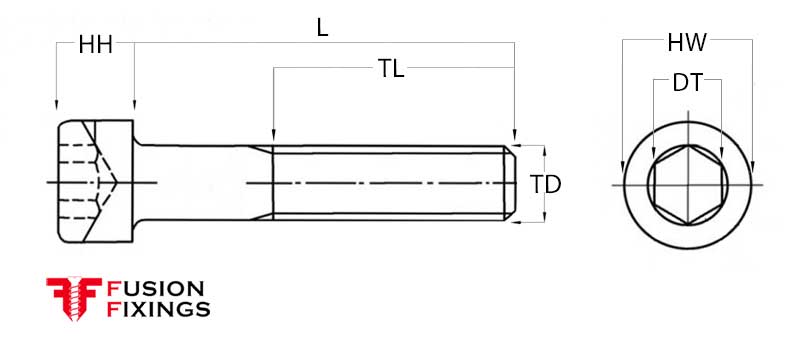

6-32 socket cap head screw specification:

• Diameter (TD): 6-32
• Threads per inch (TPI): 32
• Length (L): 2 inch
• Thread length (TL): 0.75 inch min - 1.05 inch max
• Head width (HW): 0.226 inch max
• Head height (HH): 0.138 inch max
• Head type: Cap head
• Recess type (DT): Internal hex drive (7/64 inch)
• Material: Grade 12.9 steel
• Finish: Self colour
• Conformality: ASME B18.3


Part of an extensive range of UNC self colour cap head screws available from Fusion Fixings with bulk discounts.
