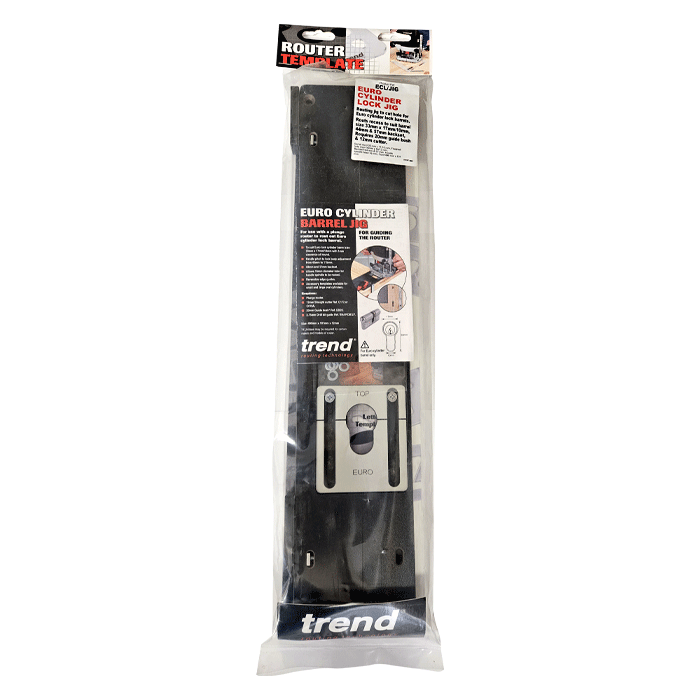

Trend Euro Cylinder Lock Barrel Routing Jig (ECL/JIG) - Clearance

Pro Adjustable Router Jig

The Trend Euro Cylinder Lock Barrel Routing Jig is a professional-quality routing template designed to make the installation of Euro profile cylinder locks quick, accurate and repeatable.

Now at a clearance price but with limited stock, so once they are gone, they are gone!

Designed for joiners, door installers and locksmiths, this adjustable jig allows precise routing of the cylinder recess, handle spindle hole and lock plate positions, helping achieve a clean professional finish every time.

Manufactured from 12mm thick high-pressure laminate (HPL) for durability and stability, the reversible design allows the jig to be used on different door orientations.

Part of a larger range Trend clearance items now available for Fusion Fixings.

Trend Euro Cylinder Lock Barrel Routing Jig Technical Specifications

• Material: 12mm High Pressure Laminate
• Cylinder barrel size: 33mm x 17mm / 10mm
• Finished aperture size: 35mm x 19mm / 12mm
• Backsets: 44mm & 57mm
• Handle spindle hole: 16mm
• Adjustment range: 45mm - 115mm handle pitch
• Jig size: 490mm x 101mm
• Router requirement: Plunge router
• Cutter required: 12mm diameter router cutter
• Guide bush required: 20mm diameter
• Cylinder included: No


Trend Euro Cylinder Lock Barrel Routing Jig Frequently Asked Questions

What is the Trend barrel routing jig used for?

The Trend routing jog is used to accurately route recesses in doors for fitting Euro cylinder lock barrels and associated handles.

What size Euro cylinder does this jig fit?

The jig is designed for Euro cylinder barrels measuring 33mm x 17mm / 10mm and creates a finished aperture of approximately 35mm x 19mm / 12mm.

Can this jig be used on both sides of a door?

Yes, the reversible design allows the jig to be used on different door orientations.

What router cutter is required?

The jig requires a 12mm diameter router cutter and a 20mm diameter guide bush fitted to a plunge router.

Does the Trend jig include a router cutter?

No, the jig is supplied as a routing template only. A compatible router cutter and guide bush are required separately.

Is this suitable for professional door installers?

Yes, the durable construction and adjustable design make it ideal for professional joiners, locksmiths and installers who regularly fit Euro cylinder locks.
