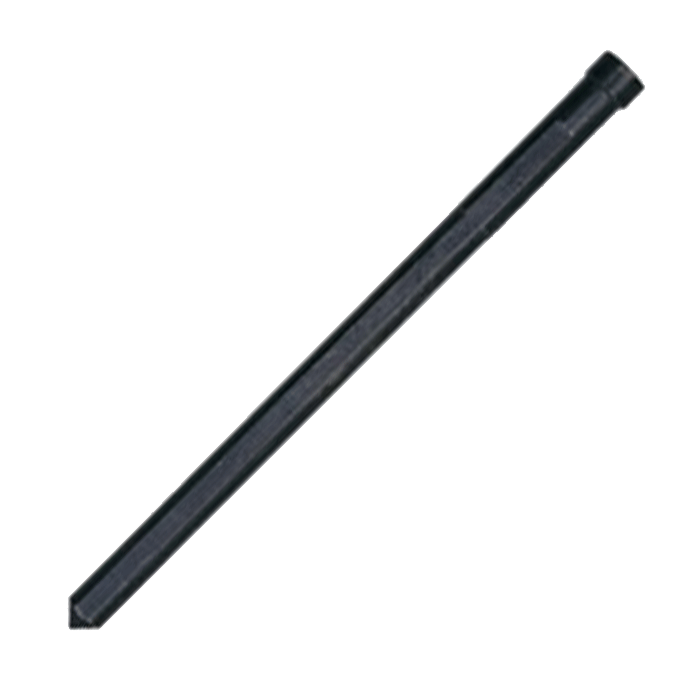

Rotabroach Pilot Pin for Long Series Mag Drill Annular Cutters - SRA50

Rotabroach Pilot Pin

The Rotabroach Pilot Pin is a genuine replacement pilot pin designed for use with Rotabroach long series annular cutters.

The pilot pin locates against the workpiece before drilling begins which helps to accurately position the annular cutter and reduce wandering during initial contact. This helps to ensure hole accuracy, better drilling consistency, and cleaner hole start.

As drilling progresses, the pilot pin retracts into the arbor, allowing coolant or cutting fluid to flow through the centre of the cutter directly onto the cutting edges.

Once the cut is complete, the spring-loaded pilot pin assists in ejecting the metal slug from inside the annular cutter.

Engineered to improve drilling accuracy and efficient hole cutting with magnetic drilling machines. An accessory to a range of Mag Drill Cutters available from Fusion Fixings.

Rotabroach Pilot Pin Technical Specifications

• Product Type: Pilot pin
• Cutter Compatibility: Long series annular cutters
• Depth of Cut: 50mm cutters
• Primary Function: Positioning, coolant flow & slug ejection


Rotabroach Pilot Pin Frequently Asked Questions

What is the Rotabroach pilot pin used for?

The pilot pin is used with short-series annular cutters to accurately locate the cutter, allow coolant to flow through the cutter, and eject the metal slug after drilling.

Which cutters does this pilot pin fit?

The SRA50 pilot pin is designed for Rotabroach short-series annular cutters with a 25mm depth of cut.

Can I use an annular cutter without a pilot pin?

You can, but it’s recommend using the correct pilot pin to achieve accurate positioning, proper coolant delivery, and reliable slug ejection.

Does the pilot pin improve cutter life?

Yes, by allowing coolant to reach the cutting edges and helping reduce heat build-up, the pilot pin contributes to improved cutter performance and longer service life.
