M8 (10mm) x 110mm, Socket Shoulder Screws, Self-Colour, Grade 12.9, ISO 7379

Please Note: Image is for illustration purposes only. For accurate specifications, please refer to the information provided or reach out to us directly.

Item Code: SHLDRSKTS-MSC-810110
10016
 Available for Dispatch & Collection Today
10016
 Available for Dispatch & Collection Today
10016
 Available for Dispatch & Collection Today
10016
 Available for Dispatch & Collection Today
10016
 Available for Dispatch & Collection Today
10016
 Available for Dispatch & Collection Today
10016
 Available for Dispatch & Collection Today
10016
 Available for Dispatch & Collection Today
10016
 Available for Dispatch & Collection Today

M8 Socket Shoulder Machine Screw

High-strength engineering screw manufactured to ensure thread and shaft consistency. . . .

Read More

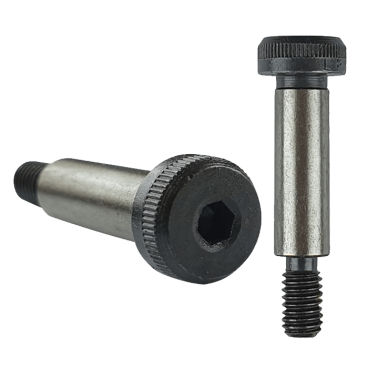

M8 Socket Shoulder Machine Screw

High-strength engineering screw manufactured to ensure thread and shaft consistency. Designed for heavy duty applications with a hex socket allowing fastening with a Hexagonal/Allen key.

Also known as shoulder bolts and consisting of a socket cap head, an enlarged unthreaded shoulder section, and a threaded lower section.

Manufactured from self-colour, grade 12.9 high tensile steel, a versatile machine screw with a shoulder section allowing it to function as a dowel, pivot, or axle, allowing movement to occur around it.

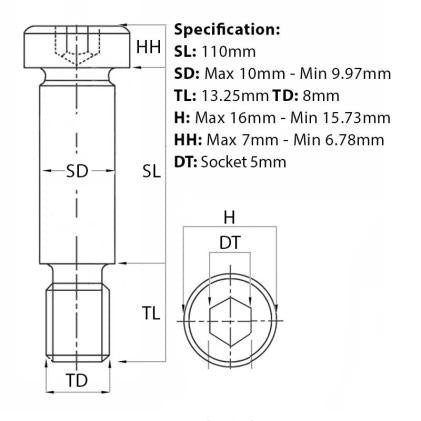

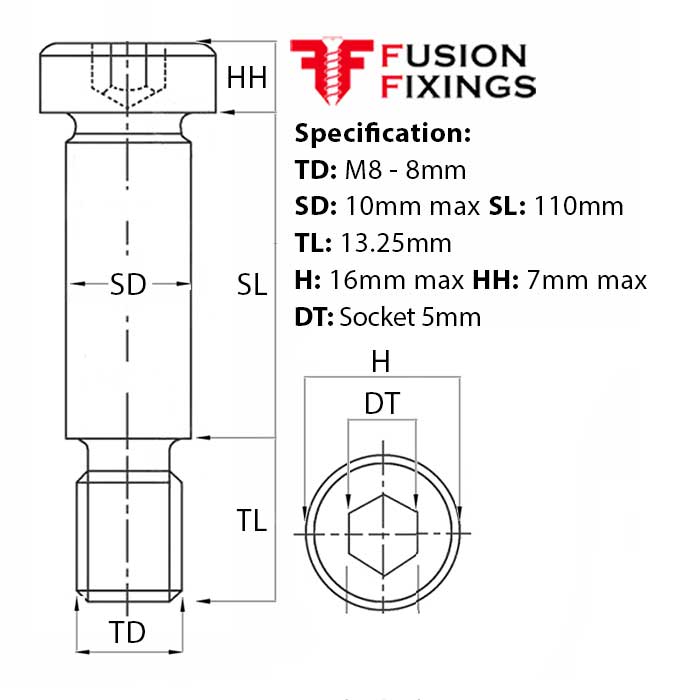

M8 Shoulder Screw Specification:

  • Shoulder Length (SL): 110mm
  • Shoulder Diameter (SD): Max 10mm – Min 9.978mm
  • Thread Length (TL): 13.25mm
  • Thread Diameter (TD): 8mm
  • Thread Pitch: 1.25mm
  • Head Width (H): Max 16mm – Min 15.73mm
  • Head Height: (HH): Max 7mm – Min 6.78mm
  • Drive Type (DT): Socket 5mm
  • Material: Self-Colour, Grade 12.9 steel
  • Conformity: ISO 7379 standards

Conforming to ISO 7379 standards, these shouldered screws are used across many sectors and part of an extensive range available in stock at Fusion Fixings, all with bulk purchase discounts.

Why choose Fusion Fixings?

With over 40 years of experience in the construction and fixings industry at Fusion Fixings, our aim is to bring you a range of quality, reliable fixings at great prices. With quantities starting from just one to as many as you like, with bulk price offers across a large number of our products.

Read Less

Delivery Information

We offer shipping options to cater for all locations throughout the UK and aim to dispatch all orders on the same working day with a cut-off of 1pm. Please visit our Delivery Information page for more information on the options available.

Please Note: Due to a national shortage of delivery drivers, we cannot guarantee delivery times, for more urgent orders, please contact us for a more accurate lead time.

Returns Information

30 Day Returns on Standard Orders

Standard orders come with a 30-day refund policy. Please visit our Returns Policy page to view our Terms & Conditions.

QTY Breaks Price Each Ex VAT
Buy 5+ £3.25
Buy 10+ £3.11
Buy 25+ £2.99
Buy 50+ £2.89
Buy 100+ £2.81
Buy 200+ £2.75
Buy 500+ £2.71
Buy 1000+ £2.69
Price Each:
Original price £2.69 - Original price £3.43
Original price
£3.43 ex VAT
£2.69 - £3.43
Current price £3.43 ex VAT
£4.12  incl VAT

Delivery Information

We offer shipping options to cater for all locations throughout the UK and aim to dispatch all orders on the same working day with a cut-off of 1pm. Please visit our Delivery Information page for more information on the options available.

Please Note: Due to a national shortage of delivery drivers, we cannot guarantee delivery times, for more urgent orders, please contact us for a more accurate lead time.

Returns Information

30 Day Returns on Standard Orders

Standard orders come with a 30-day refund policy. Please visit our Returns Policy page to view our Terms & Conditions.

Technical Specification

Thread Diameter (TD) 8mm
Shoulder Length (SL) 110mm
Shoulder Diameter (SD) Max 10mm – Min 9.978mm
Thread Length (TL) 13.25mm
Thread Pitch (TP) 1.25mm
Head Width (HW) Max 16mm – Min 15.73mm
Drive Type Socket 5mm
Material Grade 12.9 steel
Conformity ISO 7379
