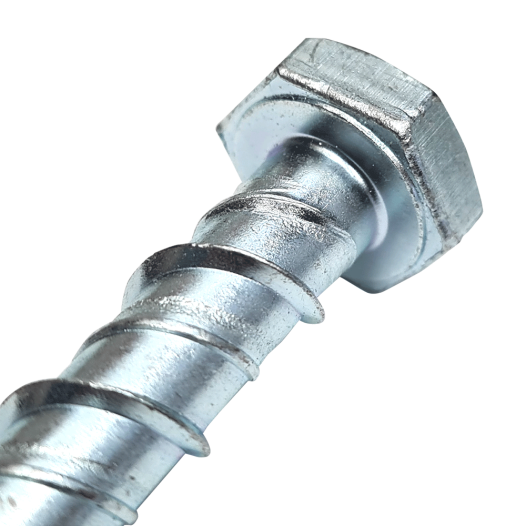

M8 (10mm) x 60mm Hex Head JCP Ankerbolt, Concrete Bolt, Steel BZP (JAB08/10060)
Please Note: Image is for illustration purposes only. For accurate specifications, please refer to the information provided or reach out to us directly.
Install into masonry without a rawl plug
Designed to effectively secure fixtures directly into none-cracked concrete and other masonry mate. . .
Install into masonry without a rawl plug
Designed to effectively secure fixtures directly into none-cracked concrete and other masonry materials without the need for a rawl plug. Ideal for fast, reliable installation, this high-performance hex head concrete screw provides a strong fixing without the need for traditional expansion plugs or chemical resin.
Manufactured from hardened steel with a bright zinc plated (BZP) finish, these masonry screws feature a self-tapping thread that cuts into the pre-drilled hole during installation.
Its innovative undercutting action creates a positive mechanical anchorage, providing a secure fixing without generating conventional expansion forces.
The hex head also allows installation with a range of conventional tools, making this masonry screw ideal for a range of trades including builders, electricians, mechanical installers and construction professionals.

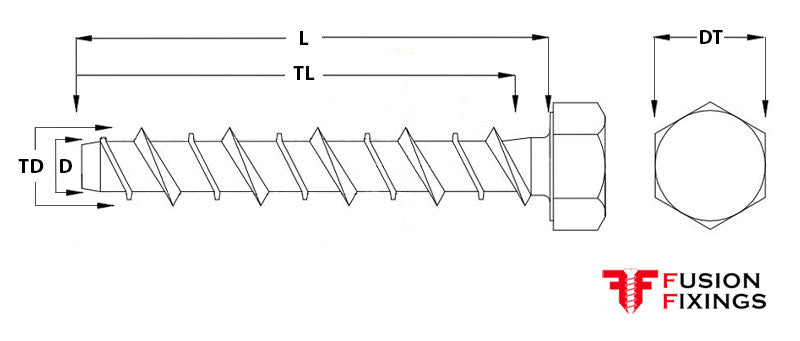

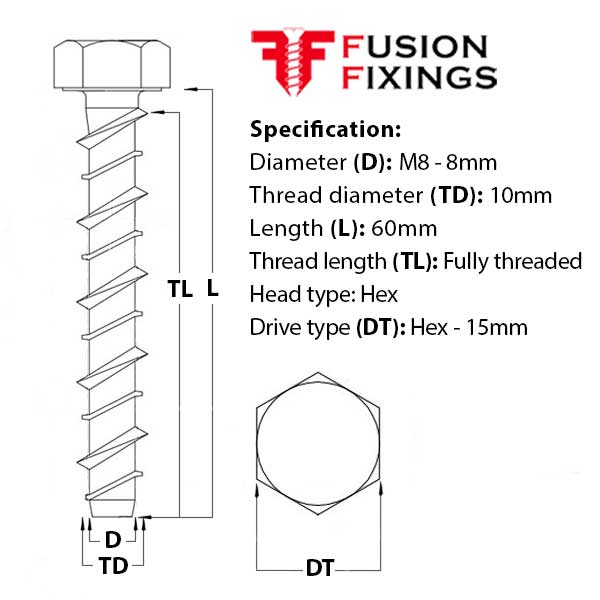

JCP Ankerbolt Technical Specifications
- Drill hole diameter (HD): M8 - 8mm
- Thread diameter (TD): 10mm
- Overall length (L): 60mm
- Maximum fixture thickness: 20mm
- Minimum hole depth: 55mm
- Head type: Hex head
- Width across flats / drive type (DT): Hex 15mm
- Material: Hardened steel
- Finish: Bright zinc plated (BZP)
Part of a larger range of concrete screws from Fusion Fixings at great prices.
How to Install a JCP Ankerbolt
- Position the fixture: Mark the required fixing position and establish the correct hole location.
- Drill the hole: Use the correct sized masonry drill bit to drill the minimum hole depth.
- Clean the hole: Remove dust and drilling debris to ensure correct installation.
- Position the Ankerbolt: Insert the anchor through the fixture and into the prepared hole.
- Tighten the fixing: Use a suitable spanner or socket to tighten the hexagon head.
-
Check the installation: Confirm the fixture is secure and that the anchor has been installed in accordance with the manufacturer's instructions.
JCP Ankerbolt Frequently Asked Questions
What is an Ankerbolt used for?
The JCP Ankerbolt is a concrete screw designed to effectively secure fixtures and equipment directly into none-cracked concrete. It is commonly used for installing brackets, supports, electrical equipment, and other construction fixtures.
What is the difference between an Ankerbolt and a traditional expansion bolt?
An expansion bolt relies on an expansion mechanism to grip the surrounding concrete and secure the fixings. The JCP Ankerbolt uses a self-tapping thread with an undercutting action to create mechanical anchorage without conventional expansion forces.
This makes them a popular choice due to not needing a rawl plug or resin and makes it ideal for applications where expansion forces are undesirable.
Can JCP Ankerbolts be removed once installed?
Yes, the JCP Ankerbolts are designed to be removable, making them useful for applications where fixtures may need to be dismantled or repositioned.
Can I use a BZP Ankerbolt outdoors?
These JCP Ankerbolt have a standard bright zinc plating (minimum 5-micron coating) and are for use in dry internal conditions. They should not be used in external conditions for prolonged outdoor exposure.
