6 x 32mm Dowel Pin, Hardened & Ground Steel, Self-Colour, DIN 6325

Precision Metric Dowel Pins

6 x 32mm hard and ground metric metal dowel pin, manufactured for installation into accurately drilled and reamed holes to locate and align two or more components.

Once fitted, they provide precise repeat positioning, helping eliminate movement, improve assembly accuracy, and simplify maintenance or replacement of parts.

A metal dowel pin manufactured from a hard and ground steel with accurate measurements for a precise fit. Used in numerous applications including precision machine assemblies, gearboxes, motors, alignment, tooling, and repeat production assembly systems.

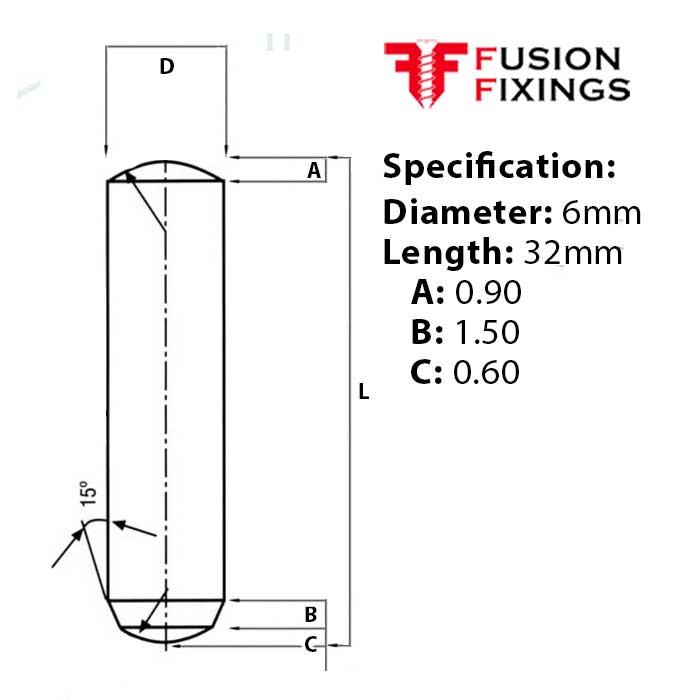

Dowel Pin Specifications:

• Product Type: Solid Metric Dowel Pins

• Diameter (D): 6mm

• Length (L): 32mm
  o    A: 0.90
  o    B: 1.50
  o    C: 0.60

• Material: Hard & Ground Steel

• Tolerance: M6

• Conformity: DIN 6325

Manufactured to DIN 6325 standards and part of a growing range of metal dowel pins held in stock with bulk price discounts.

Frequently asked questions about hard and ground dowel pins

What are hardened and ground dowel pins used for?

The dowel pins are used to accurately locate and align machine components, tooling, fixtures, and mechanical assemblies where accurate positioning is critical.

What does DIN 6325 mean?

DIN 6325 is a recognised engineering standard for precision hardened and ground parallel dowel pins used in mechanical assemblies.

Do dowel pins need reamed holes?

Yes, in most precision engineering applications, dowel pins are designed to fit into drilled and reamed holes for correct tolerance and alignment.

What hardness are hardened dowel pins?

DIN 6325 dowel pins are typically through hardened to approximately 60 ±2 HRC, providing excellent wear resistance.

Can hardened dowel pins be reused?

In many applications, yes, provided there is no wear, damage, or deformation during removal or operation.
