M5 (6mm) x 75mm Torx (T25) Pan JCP Ankerbolt Concrete Bolt Steel BZP - Box of 100 - CLEARANCE
Please Note: Image is for illustration purposes only. For accurate specifications, please refer to the information provided or reach out to us directly.
Box of 100 concrete screws at a clearance price
M5 Ankerbolt specifically designed to offer a secure anchorage in a variety of hard materials. Th. . .
Box of 100 concrete screws at a clearance price
M5 Ankerbolt specifically designed to offer a secure anchorage in a variety of hard materials. These include non-cracked concrete, stone, dense concrete blocks, solid brickwork, and light aggregate blocks.
Now at a clearance price but with limited stock, so once they are gone, they are gone!

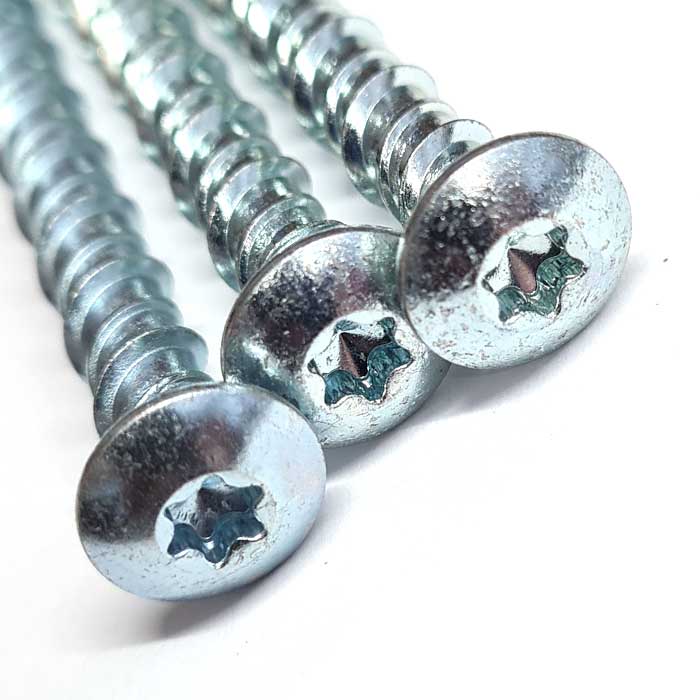

Installed within a pre-drilled hole they are also known as a masonry bolt and designed with a pan head which includes a Torx (T25) drive recess.

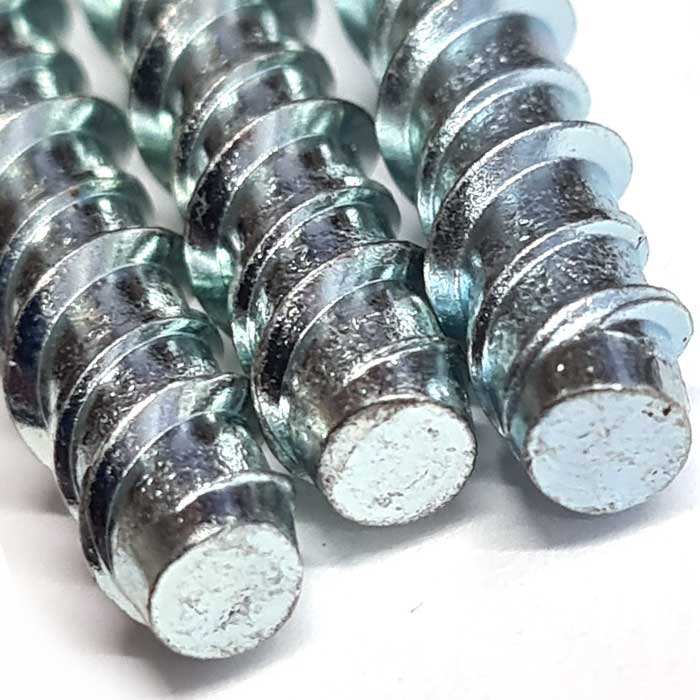

Combined with a self-tapping thread with an expansion free undercutting action that allows a secure anchorage.
These JCP Ankerbolts are manufactured from hardened steel with a bright zinc plating (BZP) for a mid-level corrosion-resistance.

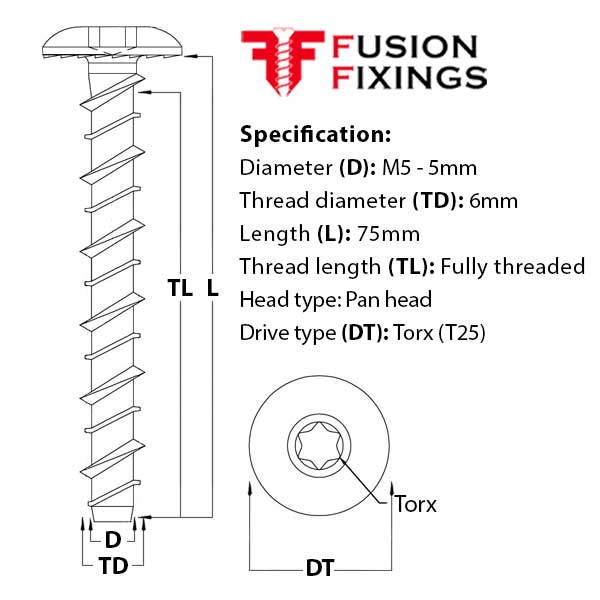

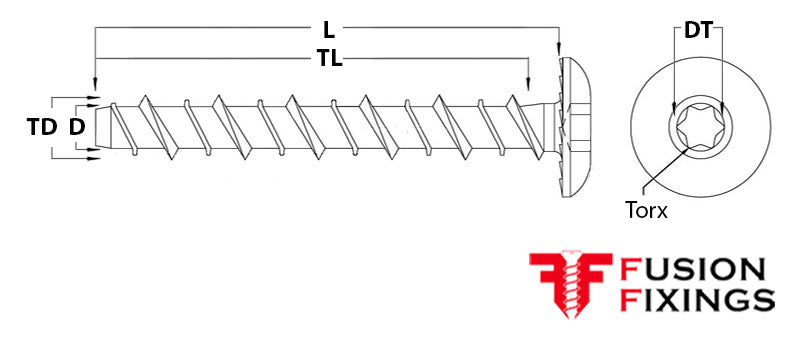

M5 Ankerbolt specification:
- Diameter (drill hole size) (D): M5 - 5mm
- Thread diameter (TD): 6mm
- Length (L): 75mm
- Thread length (TL): Fully threaded
- Head type: Pan head
- Drive type (DT): Torx (T25)
- Material: Hardened steel
- Finish: Bright zinc plated (BZP)
Used by DIY enthusiasts and professionals across many sectors. Part of a growing range of Ankerbolts from Fusion Fixings with bulk price discount.
JCP Ankerbolt Frequently Asked Questions
What is an Ankerbolt used for?
The JCP Ankerbolt is a concrete screw designed to effectively secure fixtures and equipment directly into none-cracked concrete. It is commonly used for installing brackets, supports, electrical equipment, and other construction fixtures.
What is the difference between an Ankerbolt and a traditional expansion bolt?
An expansion bolt relies on an expansion mechanism to grip the surrounding concrete and secure the fixings. The JCP Ankerbolt uses a self-tapping thread with an undercutting action to create mechanical anchorage without conventional expansion forces.
This makes them a popular choice due to not needing a rawl plug or resin and makes it ideal for applications where expansion forces are undesirable.
Can JCP Ankerbolts be removed once installed?
Yes, the JCP Ankerbolts are designed to be removable, making them useful for applications where fixtures may need to be dismantled or repositioned.
Can I use a BZP Ankerbolt outdoors?
These JCP Ankerbolt have a standard bright zinc plating (minimum 5-micron coating) and are for use in dry internal conditions. They should not be used in external conditions for prolonged outdoor exposure.
