M20 x 270mm Socket Cap Head Screw, Self Colour, DIN 912
Please Note: Image is for illustration purposes only. For accurate specifications, please refer to the information provided or reach out to us directly.
M20 cap head screw
Cap head screw with a deep internal socket recess that allows easy installation, application of torque for a secure hold, and loosening if. . .
M20 cap head screw
Cap head screw with a deep internal socket recess that allows easy installation, application of torque for a secure hold, and loosening if needed.
A self-colour machine screw with a distinctive cylindrical head that’s designed to achieve high torque and manufactured from grade 12.9 high tensile steel for strength.
Installed with an Allen wrench or hex key sees them widely used including situations where space is tight and where a secure hold is needed.
Available in many sizes and lengths, these socket cap head screws are used by DIY enthusiasts and professionals across many diverse sectors include automotive, aerospace, machinery, and construction.

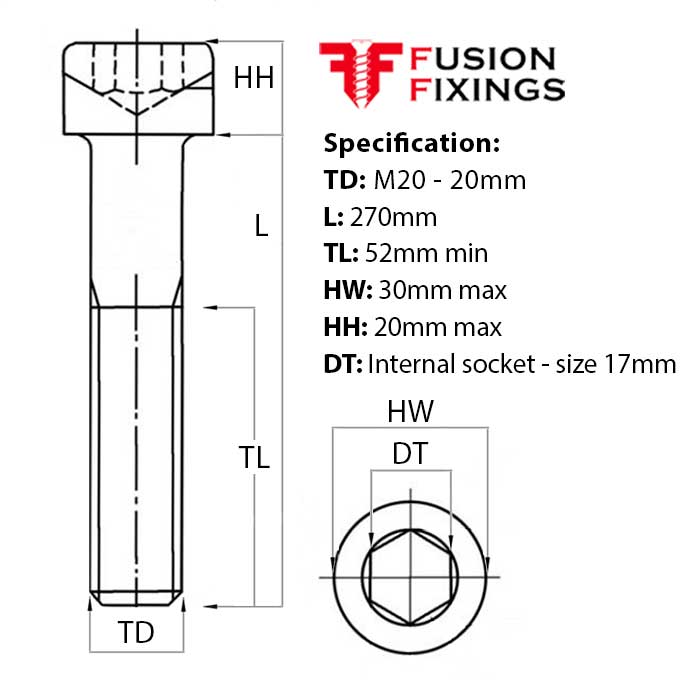

M20 cap head screw specification:
- Diameter (TD): M20 - 20mm
- Length (L): 270mm
- Thread length (TL): 52mm
- Head width (HW): 30mm max
- Head height (HH): 20mm max
- Head type: Cap Head
- Recess type (DT): Internal hex drive (Size 17mm)
- Pitch: 2.5mm
- Material: Grade 12.9 high tensile steel
- Conformality: DIN 912
Part of an extensive range of self colour socket cap head screws available from Fusion Fixings with bulk price discounts.
