M16 x 190mm Socket Cap Head Screw, Self Colour, DIN 912
M16 socket cap head screw
M16 cap head screw with a deep internal socket recess for easy installation and application of the correct torque for a secure hold. . .
M16 socket cap head screw
M16 cap head screw with a deep internal socket recess for easy installation and application of the correct torque for a secure hold.
A self-colour machine screw with a distinctive cylindrical head that’s designed to achieve high torque easily and manufactured from grade 12.9 high tensile steel for strength.
Installed with an Allen wrench or hex key sees them widely used including situations where space is tight and where a secure hold is needed.
Available in many sizes and lengths, these long self-colour cap head screws are used by DIY enthusiasts and professionals across many diverse sectors include automotive, aerospace, machinery, and construction.

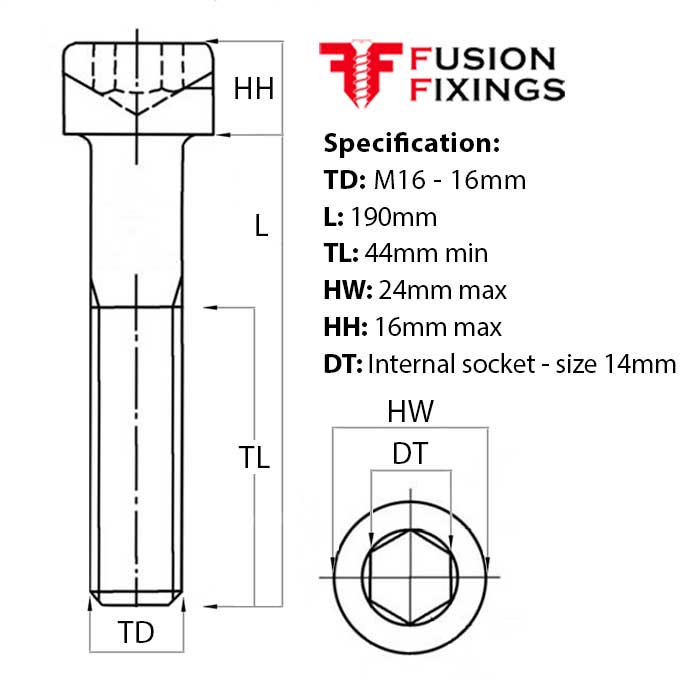

M16 socket cap head screw specification:
- Diameter (TD): M16 - 16mm
- Length (L): 190mm
- Thread length (TL): 44mm min
- Head width (HW): 24mm max
- Head height (HH): 16mm max
- Head type: Cap Head
- Recess type (DT): C
- Pitch: 2mm
- Material: Grade 12.9 high tensile steel
- Finish: Self-colour
- Conformality: DIN 912
An M16 self-colour socket cap head screw, part of an extensive range of cap head screws available from Fusion Fixings with bulk discounts.
Don't forget the hex nut to go with your cap head screw!
If you need a hex nut to go with your self colour socket cap head screw, then take a look at our self-colour M16 hex nut!
