M10 x 150mm Carriage bolt (Coach Bolt) A2 Stainless Steel DIN 603

Please Note: Image is for illustration purposes only. For accurate specifications, please refer to the information provided or reach out to us directly.

Item Code: CSCB-MA2-10150
10140
 Available for Dispatch & Collection Today
10140
 Available for Dispatch & Collection Today
10140
 Available for Dispatch & Collection Today
10140
 Available for Dispatch & Collection Today
10140
 Available for Dispatch & Collection Today

M10 Carriage Bolt

Carriage bolt with a smooth head, no drive recess for security, and a square neck beneath the head that prevents rotation when tightened fr. . .

Read More

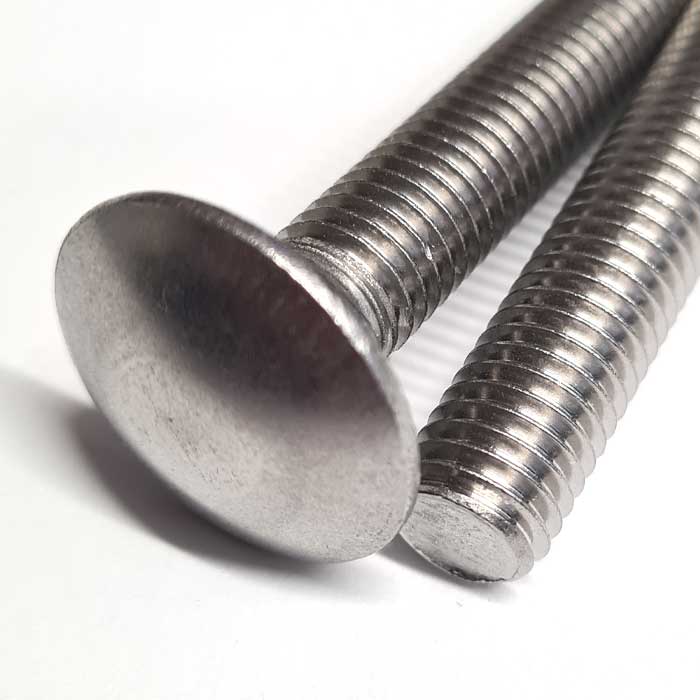

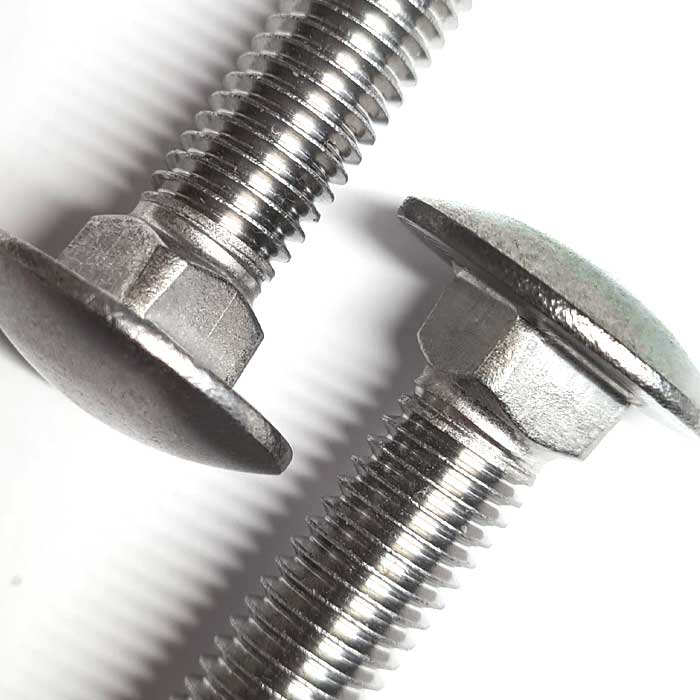

M10 Carriage Bolt

Carriage bolt with a smooth head, no drive recess for security, and a square neck beneath the head that prevents rotation when tightened from the back.

The square neck under the rounded head locks into wood or metal, preventing rotation during installation, which allows easy one-sided fastening.

The smooth round head allows for a flush finish and with no drive recess restricts the bolt from being removed or tampered with without clear access to the back.

This adds an element of security to applications where disassembly should be restricted.

A combination that sees these coach bolts widely used and being manufactured from A2 stainless steel makes them versatile for both internal and external uses.

Known in the trade as carriage bolts, coach bolts, cup square carriage bolts, and used by DIY enthusiasts and professionals alike.

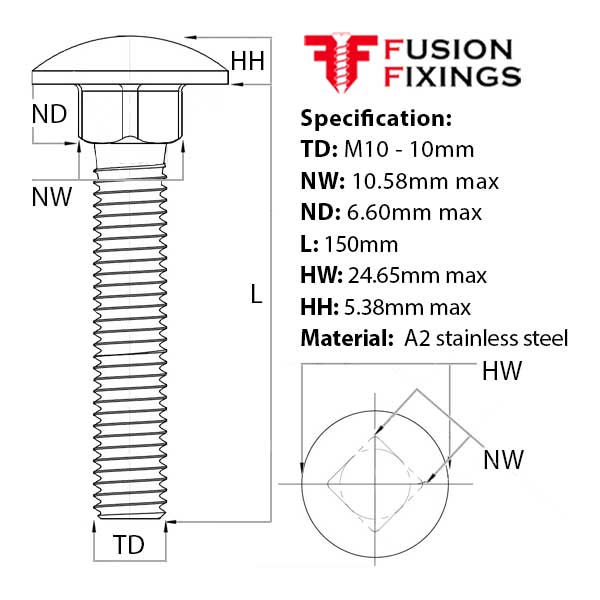

M10 Carriage Bolt Specification

  • Diameter (TD): M10 - 10mm
  • Neck width (NW): 10.58mm max
  • Neck depth (ND): 6.60mm max
  • Length (L): 150mm
  • Head width (HW): 24.65mm max
  • Dome head height (HH): 5.38mm max
  • Thread Pitch: 1.50mm
  • Material: A2 stainless steel

Don’t forget the hex nuts

Do you need the hex nuts for use with these carriage bolts? If so, see our stainless steel M10 hex nut.

The M10 carriage bolt is part of a larger range of carriage bolts available at competitive prices with bulk price discounts.

Read Less

Delivery Information

We offer shipping options to cater for all locations throughout the UK and aim to dispatch all orders on the same working day with a cut-off of 1pm. Please visit our Delivery Information page for more information on the options available.

Please Note: Due to a national shortage of delivery drivers, we cannot guarantee delivery times, for more urgent orders, please contact us for a more accurate lead time.

Returns Information

30 Day Returns on Standard Orders

Standard orders come with a 30-day refund policy. Please visit our Returns Policy page to view our Terms & Conditions.

QTY Breaks Price Each Ex VAT
Buy 10+ £0.94
Buy 50+ £0.78
Buy 200+ £0.70
Buy 5+ £1.10
Price Each:
Original price £0.70 - Original price £1.27
Original price
£1.27 ex VAT
£0.70 - £1.27
Current price £1.27 ex VAT
£1.52  incl VAT

Delivery Information

We offer shipping options to cater for all locations throughout the UK and aim to dispatch all orders on the same working day with a cut-off of 1pm. Please visit our Delivery Information page for more information on the options available.

Please Note: Due to a national shortage of delivery drivers, we cannot guarantee delivery times, for more urgent orders, please contact us for a more accurate lead time.

Returns Information

30 Day Returns on Standard Orders

Standard orders come with a 30-day refund policy. Please visit our Returns Policy page to view our Terms & Conditions.

Technical Specification

Thread Diameter (TD) M10 - 10mm
Length (L) 150mm
Thread Length (TL) 24.65mm max
Thread Pitch (TP) 1.50mm
Head Height (HH) 5.38mm max
Material A2 stainless steel
Conformity DIN 603
