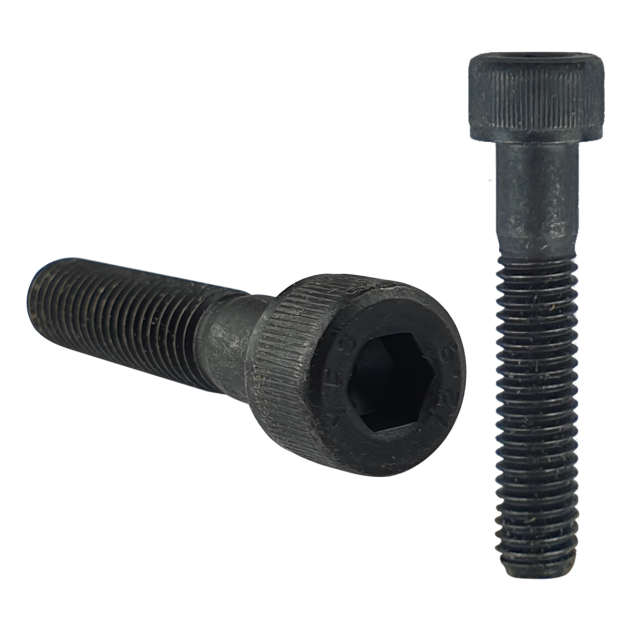

8-32 UNC x 1 1/2 Inch Socket Cap Head Screw, Self Colour Grade 12.9 Steel (ASME B18.3)

8-32 socket cap head screw

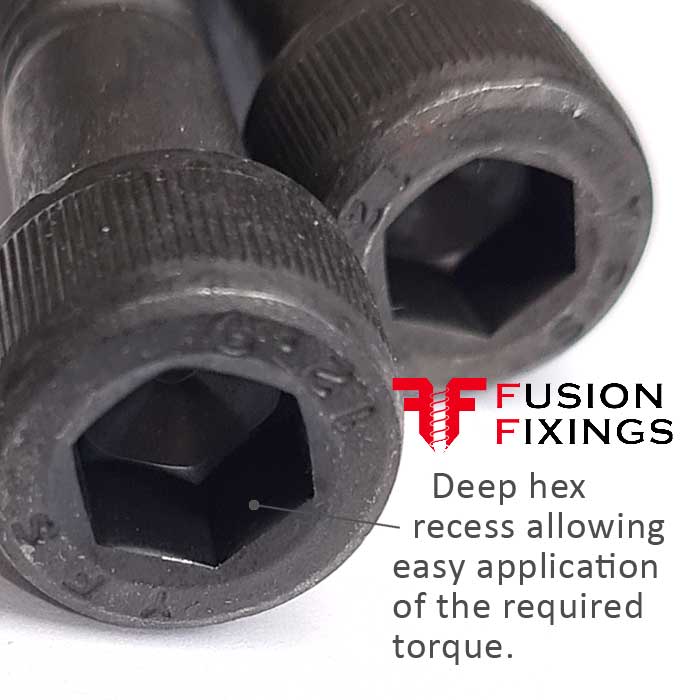

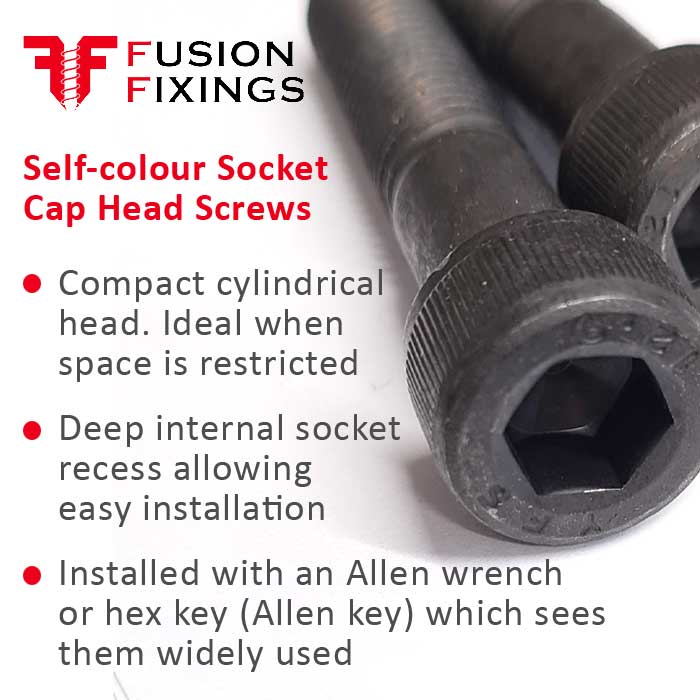

High-strength socket cap screw for demanding applications. This 8-32 x 1 1/2 inch socket cap head screw features a compact cylindrical head and a deep internal hex drive allowing application of the required torque using a hex key or Allen wrench.

Manufactured from high tensile grade 12.9 steel with a self-colour finish and manufactured to ASME B18.3 standards with a ‘Unified National Coarse’ (UNC) thread.

These socket cap head screws offer maximum performance in demanding environments where robust holding strength is needed. This makes them ideal for use in machinery, automotive, aerospace, and construction industries.

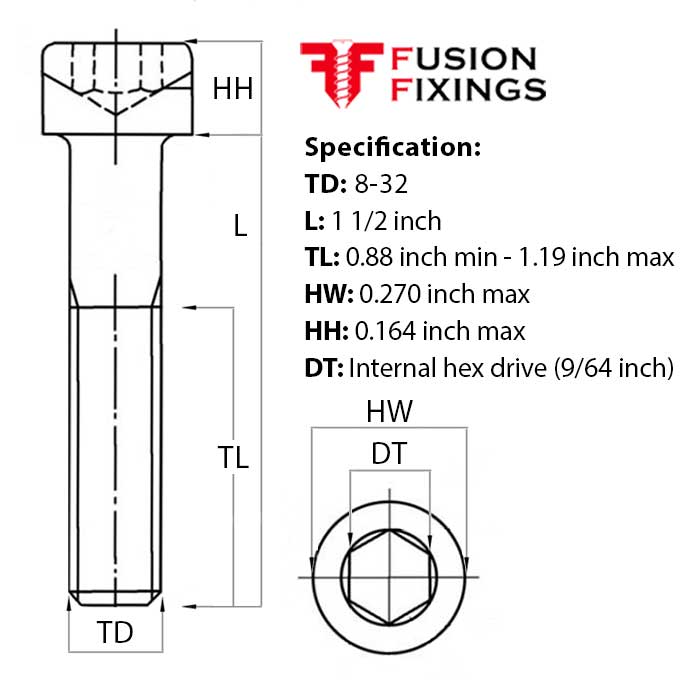

8-32 socket cap head screw specification:

• Diameter (TD): 8-32
• Threads per inch (TPI): 32
• Length (L): 1 1/2 inch
• Thread length (TL): 0.88 inch min - 1.19 inch max
• Head width (HW): 0.270 inch max
• Head height (HH): 0.164 inch max
• Head type: Cap head
• Recess type (DT): Internal hex drive (9/64 inch)
• Material: Grade 12.9 steel
• Finish: Self colour

• Conformity: ASME B18.3

A versatile screw, widely used by professionals and DIY enthusiasts alike. Part of a comprehensive range of UNC socket cap head screws from Fusion Fixings.
