4.8 x 30mm Large Flange Pop Rivets (Blind Rivet) Aluminium - Steel, Grip Range 23 - 24.5mm

Large Flange Pop Rivets

4.8mm pop rivets with a grip range of 23 - 24.5mm and manufactured with a large flange which distributes the tension over a larger area. Ideal for softer material and designed to join material together where there is no access to the back of the material.

Also known as ‘blind rivets’, these large flange pop rivets are manufactured with two core sections, which includes an aluminium rivet body and a zinc plated steel mandrel. The mandrel is pulled into the rivet gun which in turn pulls the pop rivet body and compresses it against the blind side of the material.

This ensures a secure hold and once installed the mandrel then snaps off to leave a clean permanent finish.

An effective threadless fastener ideal when there is no access to the back of the material. Used across many industries by DIY enthusiasts and professionals alike.

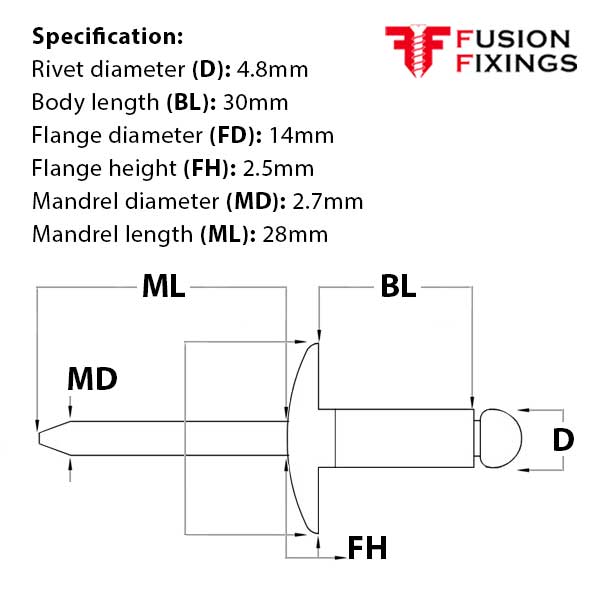

Blind rivet specification:

• Rivet diameter (D): 4.8mm

• Body length (BL): 30mm

• Head type: Dome

• Body material: Aluminium

• Flange diameter (FD): 14mm

• Flanged height (FH): 2.5mm

• Mandrel diameter (MD): 2.7mm

• Mandrel length (ML): 28mm

• Mandrel material: Steel

• Hole size: 4.9mm

• Grip range: 23mm - 24.5mm

• Sheer strength: 1540

• Tensile strength: 2230

Part of a growing range of blind rivets available at Fusion Fixings at competitive prices.
