4.8mm (No.10) x 60mm, Pan Head Self Drilling Screw (TEK), BZP, DIN 7504 N H

Please Note: Image is for illustration purposes only. For accurate specifications, please refer to the information provided or reach out to us directly.

Item Code: PZPANTEKS-BZP-4860
238
 Available for Dispatch & Collection Today
238
 Available for Dispatch & Collection Today
238
 Available for Dispatch & Collection Today
238
 Available for Dispatch & Collection Today
238
 Available for Dispatch & Collection Today
238
 Available for Dispatch & Collection Today
0
 Available for Dispatch & Collection Today
2
 Available for Dispatch & Collection Today

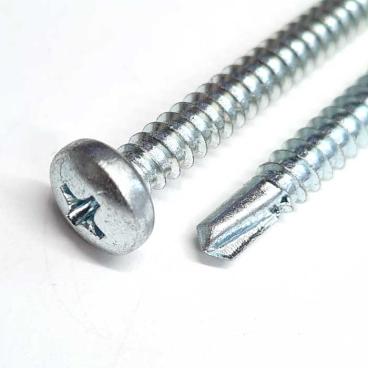

Pan head self drilling screw, 60mm

Eliminate the need for a pilot hole with this 60mm pan head self-drilling screw. The drill like tip eliminates the need for a p. . .

Read More

Pan head self drilling screw, 60mm

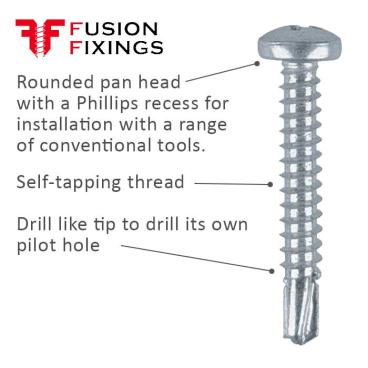

Eliminate the need for a pilot hole with this 60mm pan head self-drilling screw. The drill like tip eliminates the need for a pilot hole and includes a self-tapping thread for a strong hold.

Known as TEK screws they are manufactured with a Phillips pan head for installation with a range of standard tools, which sees them widely used.

Manufactured from steel with a bright zinc plating (BZP) for a medium level of corrosion and conforms to DIN 7504 N H standards.

A great combination that makes for a versatile screw when ease of installation, speed, and reliability are needed.

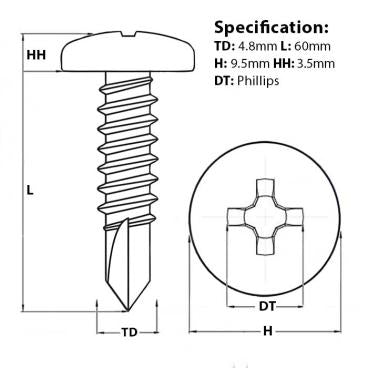

60mm self-drilling screw specification

  • Thread Diameter (TD): 4.8mm
  • Length (L): 60mm
  • Head Width (H): 9.5mm x Head Height (HH): 3.5mm
  • Drive Type: Phillips
  • Material: Steel
  • Finish: Bright zinc plated (BZP)
  • Conforms: DIN 7504 N H

Part of a growing range of self-drilling screws with a Phillips pan head that are held in stock with various lengths available.

Note - Drill point wander is a possibility with the self-drilling screws, but this can be eliminated by using a very quick centre punch indent.

Why choose Fusion Fixings?

Fusion Fixings is a family run business with over 40 years’ experience in the construction and fixings industry. Our aim is to bring you an extensive and growing range of fixings and fasteners at competitive prices, with many products benefiting from bulk purchase discounts. This is combined with a growing number of products being held in stock.

    Read Less

    Delivery Information

    We offer shipping options to cater for all locations throughout the UK and aim to dispatch all orders on the same working day with a cut-off of 1pm. Please visit our Delivery Information page for more information on the options available.

    Please Note: Due to a national shortage of delivery drivers, we cannot guarantee delivery times, for more urgent orders, please contact us for a more accurate lead time.

    Returns Information

    30 Day Returns on Standard Orders

    Standard orders come with a 30-day refund policy. Please visit our Returns Policy page to view our Terms & Conditions.

    QTY Breaks Price Each Ex VAT
    Buy 10+ £0.17
    Buy 25+ £0.13
    Buy 50+ £0.10
    Buy 100+ £0.08
    Buy 200+ £0.07
    Price Each:
    Original price £0.07 - Original price £66.00
    Original price
    £0.23 ex VAT
    £0.07 - £66.00
    Current price £0.23 ex VAT
    £0.28  incl VAT
    Bulk Packs
    Pack of 500 £34.00 ex VAT
    Pack of 100 £66.00 ex VAT

    Delivery Information

    We offer shipping options to cater for all locations throughout the UK and aim to dispatch all orders on the same working day with a cut-off of 1pm. Please visit our Delivery Information page for more information on the options available.

    Please Note: Due to a national shortage of delivery drivers, we cannot guarantee delivery times, for more urgent orders, please contact us for a more accurate lead time.

    Returns Information

    30 Day Returns on Standard Orders

    Standard orders come with a 30-day refund policy. Please visit our Returns Policy page to view our Terms & Conditions.

    Technical Specification

    Thread Diameter (TD) 4.8mm
    Length (L) 60mm
    Head Width (HW) 9.5mm x Head Height (HH): 3.5mm
    Drive Type Phillips
    Material Steel
    Finish Bright zinc plated (BZP)
    Conformity DIN 7504 N H
