1/4” UNC (5/16”) x 1”, Socket Shoulder Screw, Self-Colour, Grade 12.9, ANSI B18.3

1/4” Socket Shoulder Screw

High-strength engineering screw manufactured to ensure thread and shaft consistency. A self-colour shoulder screw with a shouldered section that functions as a dowel, pivot, or axle, allowing movement around it.

Versatile engineering screw ideal for heavy duty applications with a hex socket allowing fastening with an Allen key / hex drive which sees them widely used.

Conforming to ANSI B18.3 standards and manufactured from self-colour, grade 12.9 high tensile steel. Also known as a shoulder bolt and consisting of a socket cap head, an enlarged unthreaded ground shoulder section, and a threaded lower section.

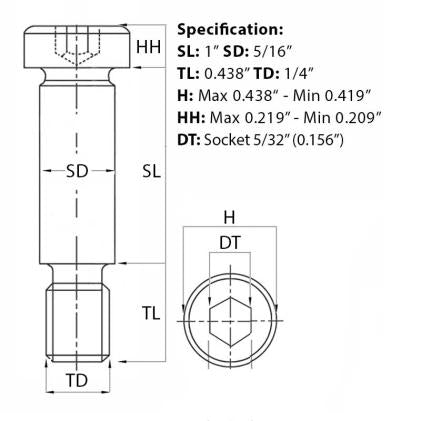

Shoulder Screw Specification:

• Shoulder Length (SL): 1”
• Shoulder Diameter (SD): 5/16”
• Thread Length (TL): 0.438”
• Thread Diameter (TD): 1/4”
• Thread Pitch: 20
• Head Width (H): Max 0.438” - Min 0.419”
• Drive Type (DT): Socket 5/32” (0.156")
• Material: Self-Colour, Grade 12.9 steel
• Head Height (HH): Max 0.219” - Min 0.209”
• Conformity: ANSI B18.3

These screws are used across many sectors and part of a growing range of shoulder screws held in stock at Fusion Fixings, all with bulk purchase discounts.
