1 (8) UNC x 36 Inch Threaded Bar, (studding) A2 Stainless Steel, ASME B18.31.3

A2 Stainless Steel Threaded Bar

1 inch UNC threaded bar offering flexibility when conventional bolts aren’t long enough as the bar can be cut to the required length if needed.

A bar which is threaded its entire length and manufactured from A2 (303) stainless steel that offers high corrosion resistance which makes it ideal for internal and external applications.

The coarse nature of the thread also resists stripping and is often a good choice for general purpose applications and areas where they can be subject to high levels of tension and pressure.

Threaded bar is used across many industries including construction, agriculture, manufacturing and used by both DIY enthusiasts and professionals alike.

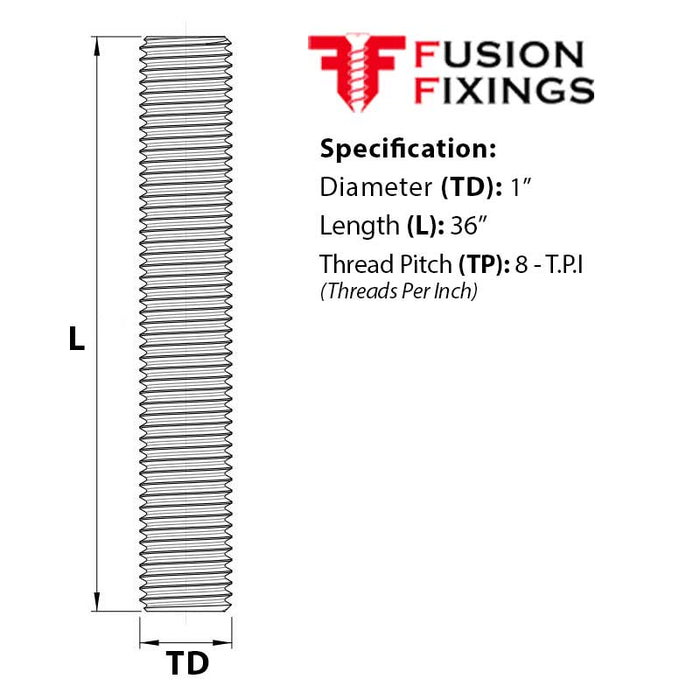

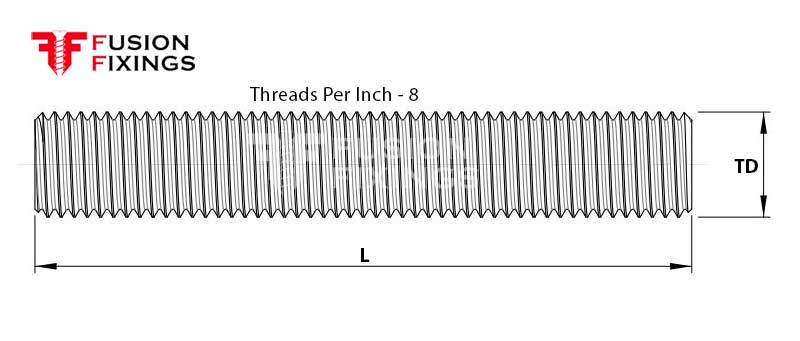

1 inch UNC threaded bar specification:

• Diameter (TD): 1 inch UNC

• Length (L): 36 inch

• Thread Pitch (TPI): 8 per inch

• Material: A2 (304) stainless steel

• Conformity: ASME B18.31.3

Also known in the trade as studding, threaded rod, and stud, this UNC threaded bar is part of a growing range held in stock at Fusion Fixings, all with competitive prices and bulk discounts.

Take a look at the growing range of threaded bar from Fusion Fixings.

Benefits of stainless steel threaded bar

• Versatility - Threaded bar is extremely versatile due to it being fully threaded and able to be cut to any length. This makes it suitable for many applications where standard fasteners won’t fit.


• Multiple Applications - It’s versatility see’s it used across many sectors including construction, manufacturing, electrical installations, plumbing, and DIY projects.


• Easy to Work With - Can be cut, drilled, and secured with standard nuts, washers, and tools.


• Secure Fastening - Provides a continuous thread, ensuring nuts and fixings grip firmly anywhere along the bar.


• High Corrosion Resistance - Being manufactured in A2 stainless steel, it had a high corrosion resistance making it ideal for internal and external applications.

FAQs about A2 stainless steel threaded bar

Is threaded bar the same as studding?

Yes, the terms “threaded bar,” “studding,” and “allthread” all refer to the same product, a long metal rod fully threaded along its length.

Can threaded bar be cut to length?

Yes, threaded bar can be cut to length and is often cut to length when conventional bolts are not long enough.

Can threaded bar be used in concrete?

Yes, threaded bar can be anchored into concrete using resin or mechanical fixings, making it a common choice for structural connections.

Can threaded bar be used outdoors?

Yes, A2 stainless steel offers excellent resistance to corrosion.

How do you join two lengths of threaded bar together?

You can join two lengths using connector nuts which ensures a strong and continuous connection.

Can threaded bar be used instead of bolts?

Yes, threaded bar is often used in place of long bolts, as it can be cut to custom lengths and fixed with nuts and washers.
