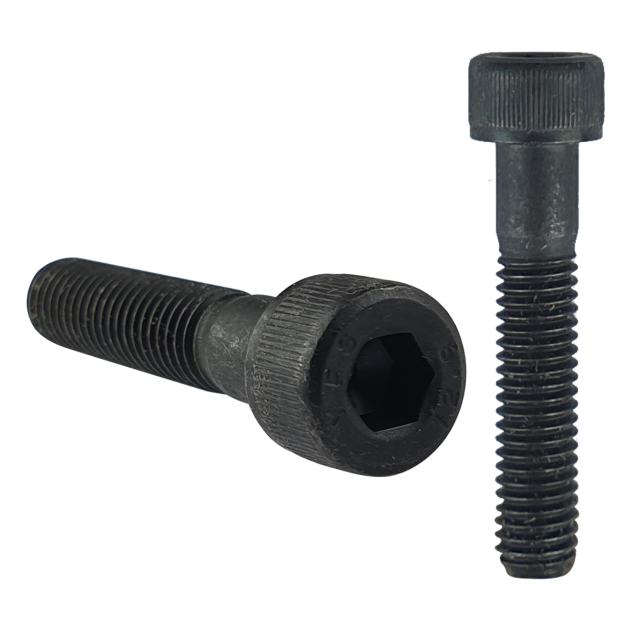

M8 x 60mm Socket Cap Head Screw, Self Colour, DIN 912

M8 socket head cap screw

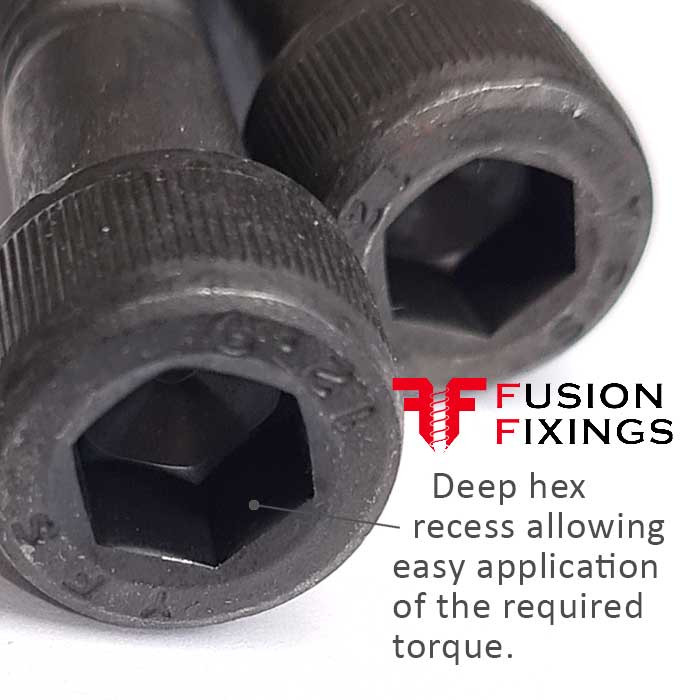

Socket cap head screw with a deep internal socket recess allowing you to apply the required torque for a secure hold.

A self-colour machine screw also known as Allen key bolts, cap head bolts, or socket screws and manufactured from grade 12.9 high tensile steel for reliability.

Ideally suited for situations where space is tight and where a high clamping force is needed. Installed with an Allen wrench or hex key which sees them widely used.

Available in a large number of sizes and lengths, these screws are used by both DIY enthusiasts and professionals across many diverse sectors. These include automotive, aerospace, machinery, electronics, and construction.

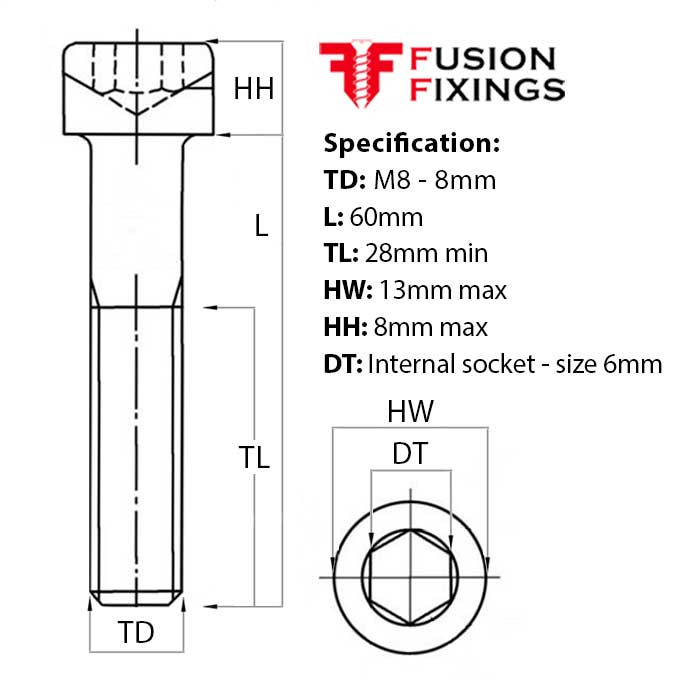

M8 socket cap head screw specification:

• Diameter (TD): M8 - 8mm
• Length (L): 60mm
• Thread length (TL): 28mm min
• Head width (HW): 13mm max
• Head height (HH): 8mm max
• Head type: Cap Head
• Drive type (DT): Internal hex drive (Size 6mm)
• Pitch: 1.25mm
• Material: Grade 12.9 high tensile steel
• Finish: Self-colour
• Conformity: DIN 912

A self-colour screw part of an extensive range of socket cap head bolts screws available from Fusion Fixings with bulk discounts.

Corrosion resistant cap head socket screws

Do you need a variety with resistance to corrosion? If so, take a look at our A2 stainless steel M8 cap head socket screw,

For the highest corrosion resistance, see our A4 stainless steel M8 cap head socket screw which offers marine grade corrosion resistance.

Why choose Fusion Fixings?

A family run business with over 40 years of experience in the construction and fixings industry. Our aim is to bring you a range of quality, reliable, fixings and fasteners at great prices.

Many products are held in stock with quantities starting from just one to as many as you like, and bulk price offers across many of our products.
