M24 x 240mm Socket Cap Head Screw, Self Colour, Grade 12.9 high tensile steel, DIN 912

M24 socket cap head screw

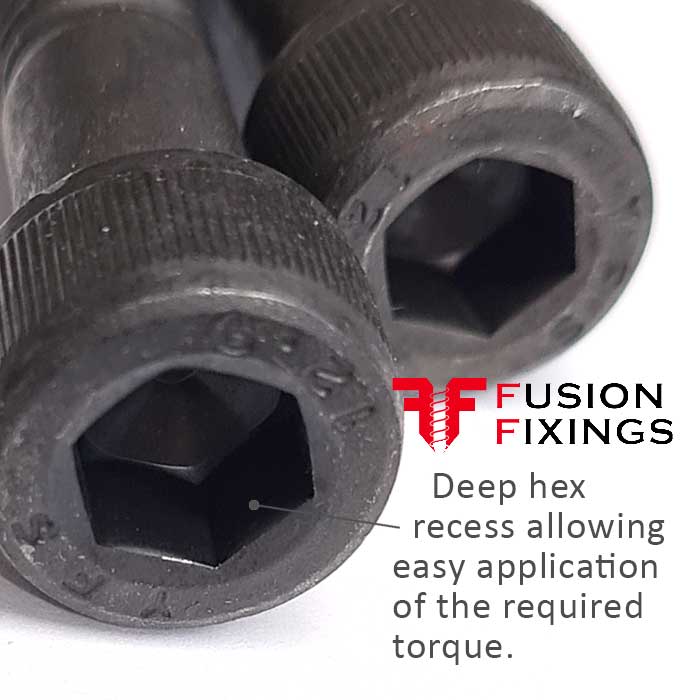

A cap head screw with a deep internal socket drive allowing easy installation, loosening, and the application of torque for a secure hold.

A self-colour machine screw manufactured in grade 12.9 high tensile steel for reliability and in accordance with DIN 912 standards.

With a compact head design that is suited for situations where space is tight and combined with a deep socket recess allowing torque to be applied easily, makes them a popular choice.

Often referred to as cap head bolts in the trade but also known as an Allen key bolt or socket screw.

Installed with an Allen wrench or hex key and available in a large range of sizes and lengths.

These cap head screws are widely used across many diverse sectors including automotive, aerospace, machinery, and construction.

M24 socket head cap screw specification:

• Diameter (TD): M24 - 24mm
• Length (L): 240mm
• Thread length (TL): 60mm min
• Head width (HW): 36mm max
• Head depth (HH): 24mm max
• Head type: Cap head
• Recess type (DT): Internal hex drive (Size 19mm)
• Pitch: 3mm
• Material: Grade 12.9 high tensile steel
• Finish: Self-colour
• Conformity: DIN 912

Used by DIY enthusiasts and professional alike and part of an extensive range of socket cap head screws available from Fusion Fixings with bulk discounts.

Looking for a cap head screw with corrosion resistance?

If you need a socket cap head screw with a high level of corrosion resistance, take a look at our A2 stainless steel cap head screws.

For the highest level of corrosion resistance, Fusion Fixings supply A4 stainless steel socket cap head screws.

FAQs about self-colour cap head socket screws

What does “Grade 12.9” mean with socket cap head screw?

Grade 12.9 refers to a high-tensile steel strength class. It means the screw has an ultimate tensile strength of 1200 MPa (or approximately 175,000 psi) making it one of the strongest metric fasteners available.

Grade 12.9 is typically used in engineering, automotive, machinery and heavy-duty applications where maximum strength is required.

What is a “self-colour” finish?

“Self-colour” means the screw is supplied in its natural steel finish after heat treatment. The screws are sometimes lightly oiled or treated with a black oxide.

Are grade 12.9 socket cap screws corrosion-resistant?

No, these cap head screws are not corrosion resistant and the self-colour or black oxide finish gives limited resistance, making them not suitable for external conditions.

How is the length of the cap head screw measured?

The length of these screws is measured from under the head to the end of the thread, not including the head height.

Can I use grade 12.9 screws in high-temperature or vibrating applications?

Yes, these grade 12.9 screws are suitable for high operating temperatures and perform well in vibration-prone environments such as engines or machinery where they are widely used.
