M3 x 14mm Flanged Socket Button Head Screw A2 Stainless ISO 7380-2

Please Note: Image is for illustration purposes only. For accurate specifications, please refer to the information provided or reach out to us directly.

Item Code: FLNGBTNSKTMS-MA2-0314
10000
 Available for Dispatch & Collection Today
10000
 Available for Dispatch & Collection Today
10000
 Available for Dispatch & Collection Today
10000
 Available for Dispatch & Collection Today
10000
 Available for Dispatch & Collection Today
10000
 Available for Dispatch & Collection Today
10000
 Available for Dispatch & Collection Today

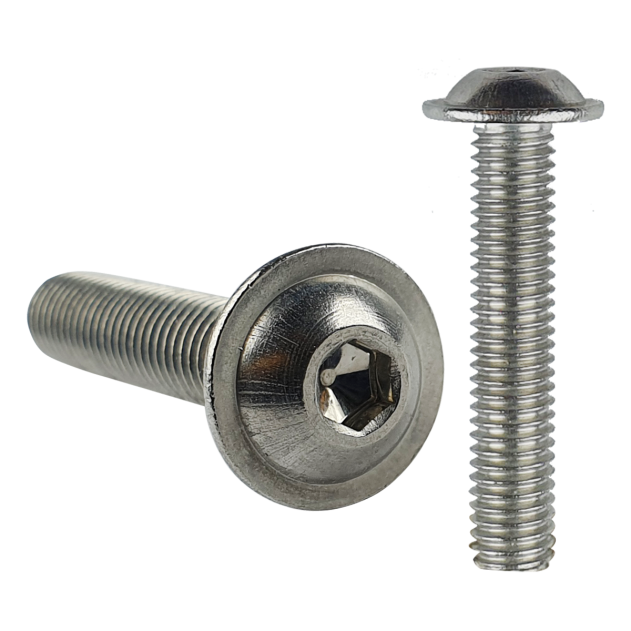

Stainless Steel Flanged Socket Button Head Screws

14mm quality machine screw with a flanged rounded button head and a socket recess. Often used where safety and . . .

Read More

Stainless Steel Flanged Socket Button Head Screws

14mm quality machine screw with a flanged rounded button head and a socket recess. Often used where safety and an aesthetic finish is required.

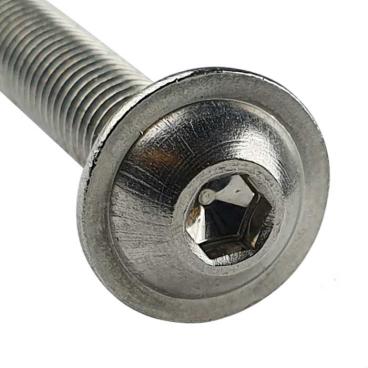

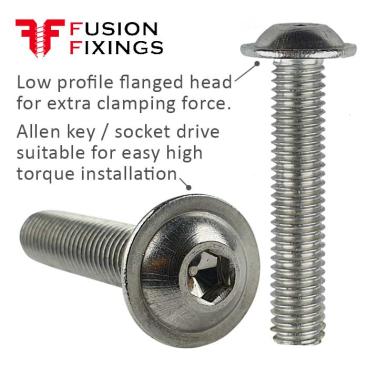

A button head screw that has a flanged head which eliminates the need for a separate washer, helps spread the tightening pressure over a wider area and protects the materials surface.

Using a socket recess also allows installation with a range of conventional Allen (socket) drives, which sees them widely used.

A socket button head screw with a smooth rounded head free of sharp or pointed edges, making them ideal from a safety and aesthetic perspective.

Ideal for use in both internal and external applications due to being manufactured from corrosion resistant A2 stainless steel.

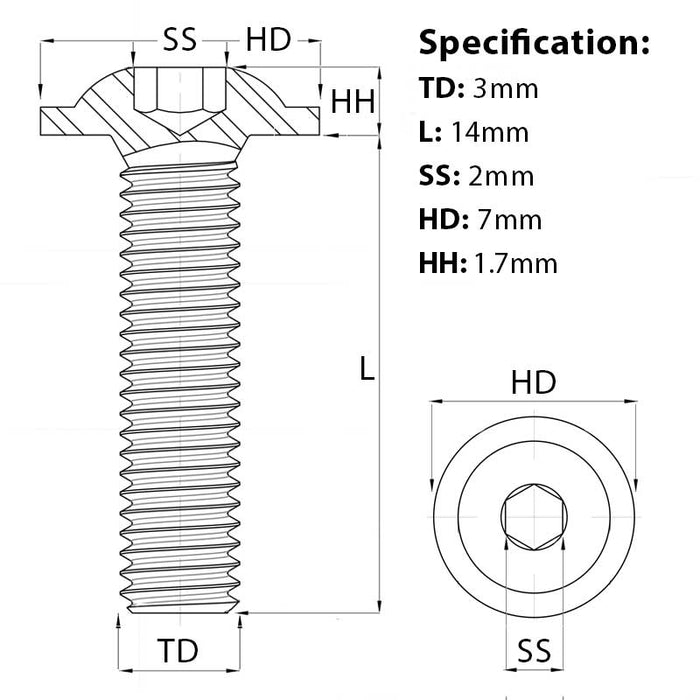

M3 Flanged Socket Button Head Screw Specification:

  • Diameter (TD): 3mm
  • Length (L): 14mm
  • Head Diameter (HD): 7mm
  • Head Height (HH): 1.7mm
  • Socket Size (SS): 2mm
  • Material: Corrosion Resistant A2 Stainless Steel, ISO 7380-2

For the full range of flanged socket button head screws, click here!

Read Less

Delivery Information

We offer shipping options to cater for all locations throughout the UK and aim to dispatch all orders on the same working day with a cut-off of 1pm. Please visit our Delivery Information page for more information on the options available.

Please Note: Due to a national shortage of delivery drivers, we cannot guarantee delivery times, for more urgent orders, please contact us for a more accurate lead time.

Returns Information

30 Day Returns on Standard Orders

Standard orders come with a 30-day refund policy. Please visit our Returns Policy page to view our Terms & Conditions.

QTY Breaks Price Each Ex VAT
Buy 25+ £0.21
Buy 50+ £0.17
Buy 100+ £0.14
Buy 200+ £0.12
Buy 500+ £0.09
Buy 1000+ £0.07
Price Each:
Original price £0.07 - Original price £0.30
Original price
£0.30 ex VAT
£0.07 - £0.30
Current price £0.30 ex VAT
£0.36  incl VAT

Delivery Information

We offer shipping options to cater for all locations throughout the UK and aim to dispatch all orders on the same working day with a cut-off of 1pm. Please visit our Delivery Information page for more information on the options available.

Please Note: Due to a national shortage of delivery drivers, we cannot guarantee delivery times, for more urgent orders, please contact us for a more accurate lead time.

Returns Information

30 Day Returns on Standard Orders

Standard orders come with a 30-day refund policy. Please visit our Returns Policy page to view our Terms & Conditions.

Technical Specification

Thread Diameter (TD) 3mm
Length (L) 14mm
Thread Pitch (TP) 0.5mm
Head Width (HW) 7mm - Head Height (HH): 1.7mm
Drive Type Allen Key / Socket Drive - 2mm
Material A2 Stainless Steel
Finish Natural
Conformity ISO 7380-2
